PRODUCT INFO

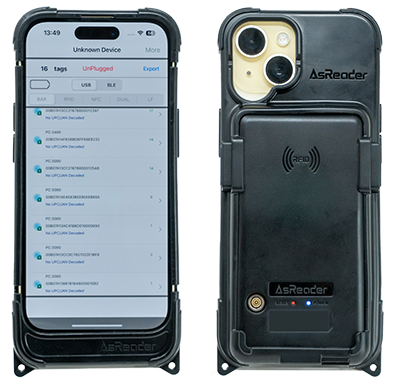

The AsReader SLIM-Type 'ASR-M30S' is a slim and ultra-lightweight smartphone-mounted RFID reader/writer. Batteryless and weighing only about 75g (less than 3 oz), it offers excellent portability. Capable of long-distance reading exceeding 2, 3, or even 5 meters depending on the tags and environment, it can be used for a wide range of applications from retail inventory management to manufacturing to healthcare to logistics delivery operations. Simply attach it to your existing iOS/Android device to enjoy the power of RFID reading and writing in your pocket.
Model Name | ASR-M30S | ||
---|---|---|---|
RFID | Standard | ISO/IEC 18000-63(formerly known as : ISO/IEC 18000-6C)/ EPCglobal Class 1 Gen 2 Impinj Gen2X |
|
Bandwidth |
US: 902.75 ~ 927.25 MHz EU, UK: 865.7 ~ 867.5 MHz Japan: 916.8 ~ 923.4 MHz |
||
Output Power | Japan: Max 250mW (24dBm) Others: Max 500mW (27dBm) |
||
Reading distance | Impinj Gen2X: Japan: 2m or more, North America: 5m or more, EU: 3m or more EPC Gen2: Japan: 1.5m or more, North America: 3.5m or more, EU: 2.5m or more The reading distance is a reference value and may vary depending on the type of tag and the environment. |
||
Polarization | Circularly Polarized | ||
Function | Read, Write, Lock, Erase | ||
Power Source | Provided from attached iOS / Android device | ||
Charging | Magnetic charging terminal, USB Type-C (Supports fast charging for iOS and Android devices) For the AC adapter, please use a product that supports USB PD (15 volts or less, 30 watts recommended) or is rated 5 volts and 3 amperes or less. |
||
Key Input | Trigger, Reset Button | ||
Interface | USB Type-C | ||
Exterior Specifications |
Dimensions (W)x(D)x(H) | 116×75×10mm | |
Weight | 75g (2.65oz) | ||
Material | PC-ABS | ||
Product Color | Black | ||
LED Indications | Red, Blue | ||
Environmental Performance |
Operation Environment | 14°~113°F (-10℃~45℃) at 20~85 %RH | |
Charging Environment | 32°~103°F (0℃~35℃) at 10~90 %RH | ||
Storage Environment | -4°~140°F (-20℃~60℃) at 10~95 %RH | ||
IP Rating | IP54 Compliant | ||
Drop Test | 5 feet (1.5m) to all six-sides and all four-corners, once each | ||
Certifications / Standards | MFi, TELEC, FCC, ISED, CE, UKCA | ||
Supported OS | iOS, Android |
Please read the License Agreement below before downloading.
Please read carefully before using the Software Development Kit "AsReader SDK" (hereafter "SDK") that is developed and offered by the Company (Asterisk Inc.).
In offering the SDK we require you to agree to the Terms of Use below as a condition of use.
Please read the Terms of Use below before installing the software.By installing the SDK you agree to the Terms of Use below. If you cannot agree with the Terms of Use below, please refrain from using the SDK.
The purpose of these Terms of Use is to determine the common Terms of Use for the SDK that is offered by the Company to the users of the SDK as they are determined in the next Article.
The licence period of the licence described in the preceding article (hereafter: "This Licence") shall be one year from the time the User agrees to these Terms of Use.
However, unless declared otherwise by either the Company or the User up to 30 days prior to the expiration of such period, This Licence shall be renewed for one year under the same conditions.
The User shall not, with respect to the Target Software and the SDK, perform any of the following acts:
If the User needs support with the API Specification document or the content of the Sample Programs, or with the development of User Software, the Company is able to provide this support to the User for a fee.
Furthermore, the contents and conditions of such support shall be determined in a separate contract to be signed by both the User and the Company.
Upon termination of this License, the User shall immediately dispose of any API Specification documents, Libraries, Sample Programs and Modification Programs, and any copies thereof.
Even if this License is terminated, Articles 5, 6, 7, 10, 12 and 13 of these Terms of Use will remain in effect.
The Company and the User shall not transfer all or part of the rights or obligations under these Terms of Use to a third party without obtaining prior consent from the other party.
In the event litigation is needed to resolve a dispute arising from these Terms of Use, the Company and the User shall in the first instance be subject to the exclusive jurisdiction of the Tokyo District Court .
Version | Update date | Size | |||
iOS (Common for Objective-C / Swift) | SDK | 5.7.0 | 17 Oct. 2025 | 2.8MB | Download(ZIP) |
iOS (Objective-C) | Sample Application | 4.8.0 | 17 Oct. 2025 | 6.6MB | Download(ZIP) |
Please check the description of the following links page.
The Mfi registration application if necessary also thank you from the following link page.
●iPhone®, iPad® and iPod touch® are registered trademarks of Apple® Inc.
●All other trademarks are property of their respective owners.
